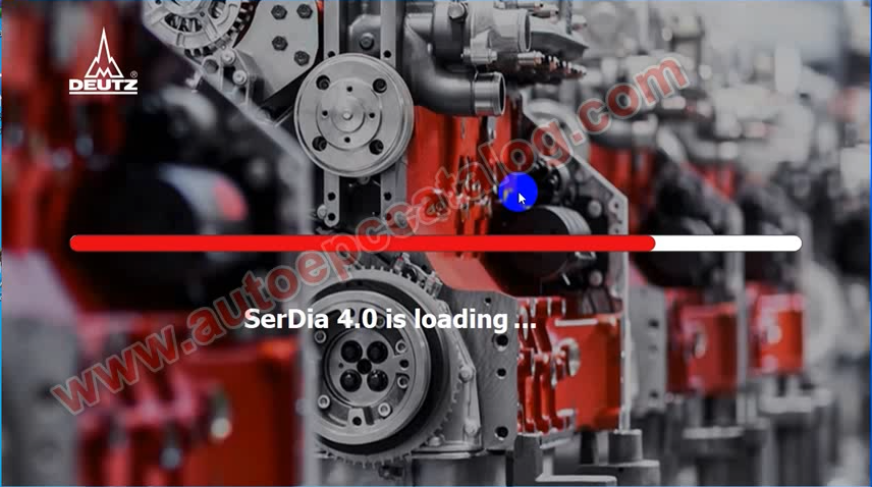

SerDia 4.0 is the new generation of the diagnostic software for DEUTZ engines,it support newest models engine for Deutz.
Deutz SerDia2010 (Service-Diagnosis) is a PC software which works together with notebook and interface to communicate with the engine control unit.Deutz SerDia2010 is the DEUTZ AG diagnostic tool used by service technicians worldwide, which enables professional commissioning, diagnosis and maintenance of all DEUTZ engine series.
Deutz Electronic engine control units (ECU) are state of the art in modern engine technology. Target for these controllers is at first to replace the functions of mechanical governors (like speed governor) and secondly to increase the ability of new functions.
To communicate with the DEUTZ-ECU’s SerDia2010 is needed.
SerDia2010 is working with DEUTZ controller family EMR4(EDC17XXXX)It is possible to use this software to communicate with different ECU’s (XXXX =CV52 or CV54 or CV56).
Deutz SerDia 4.0 SerDia2010 Features:
Year:2024 SerDia 4.0 or 2023 SerDia2010
Deutz SerDia 4.0 SerDia2010 Functions:
Adjustment
Parameterization
Calibration
Delete Error Memory
Dataset managment
Error Memory
Possible interpactions
Graphical Display
Usage
Graphical area
Table area
Print function
Trigger
Dynamic mesaurement values
Program adjustments
Language
access elevation
SpellAlphabet
Deutz SerDia 4.0 Support Engine Models:
EMR5(EMR5 DPF,EMR SCR,EMR5 V-Engine)
EMR4(EDC17 CV52,EDC17 CV54,EDC17 CV56,EDC17 CV52 V-Engine)
EMRL1(EMRL1)
EMR G1 G2(EMR G1 G2)
EMR3(EMR EDC16,EMR3 EDC7)
EMR2(EMR2)
H2(H2)
Deutz SerDia2010 Supports Engines:
– EMR4 (EDC17CV52, EDC17CV52MSV6/V8, EDC17CV54, EDC17CV56)
– EMR3 (EDC16UC40, EDC7UC31)
– EMR2
– LPG
– MD1
– EMR L1 (TCD9-18L
Deutz SerDia 4.0 SerDia2010 Support Engine Controller Units:
TCD 16.0
TCD 7.8
TCD 6.1
TCD 4.1
TCD 12.0
TCD 3.6
… …
Deutz SerDia 4.0 SerDia2010
UseCases EMR4
Engine Settings
overview fuel system
exhaust gas recirculation flap
IQA-Code
injector switch off
Compressionstest
Oil change
adjustments engine speed-acceleration pedal
constant speed.
Limp home speed
low idle speed
droop
accelerator pedal
Exhaust after treatment
overview SCR
SCR test”
DPF test
EGR test/reset
filter maintanance
EGR-actuator reset
CRT-TIER4 interim
DPF Burner-TIER4 interim
SCR-TIER4 interim
SCRT-TIER4 interim
SCRT-TIER4 final
Service Routines DFP (DOC/SCR)
Service-Case
Input test A55
NOx sensor change
EGR-Cooler change
Other
Counter and EEPROM
Sensors
Assembly Inspections and Initialisations Tests
Input Test
Output Test
Historical Data/TRIP-Recorder
Leak Test Fuel Injection System
Start-Up Checklist
HMI
FAN Control
